UV Series
Fully automatic GDM equipment

UV Series

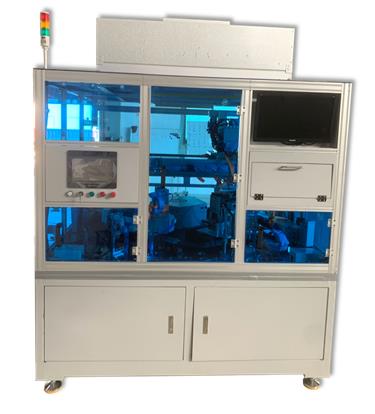

Overview:Fully automatic GDM equipment is a kind of glass texture drawing process equipment for mobile phone cameras. It includes automatic alignment, dispensing, rolling, UV curing and feeding. The equipment is mainly composed of mechanism components, rotary mechanisms, laminating mechanism, vision system, dispensing mechanism, UV exposure mechanism and electrical control system.
  • Product details
  • Parameter configuration
  • Video
  • Application

Advantages

Practicality: Automatically completes the processes of picking up, transferring, UV and unloading;

Operability: The tray automatically flows into the conveyor belt upstream, the machine automatically pick up the parts from the tray, and automatically finish the process of transferring, UV exposure and unloading after entering the main body of the equipment,;

Humanization: all parameters are pre-programmed inside the main board, no need to change any settings, saving time and labor;


Name

Specification

Item No.


Machine CT

180PCS/H

Yield Rate

99%

Utilization Rate

98%

Machine Precision

±0.05mm

Machine Dimension

L*W*H:1800mm*1650mm*2447mm

Power

6KW

Weight

2000KG

Air Consumption

7L/MIN

Working pressure

0.50.8MPa

Voltage

AC 220V ±10%  50HZ
