Laminating Series

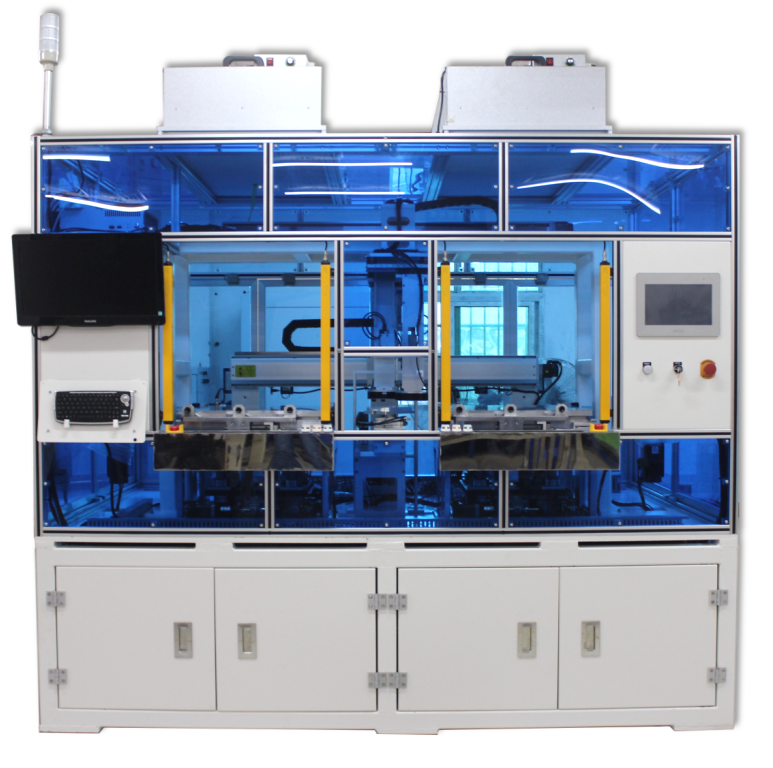

3D Vacuum laminating equipment

Laminating Series

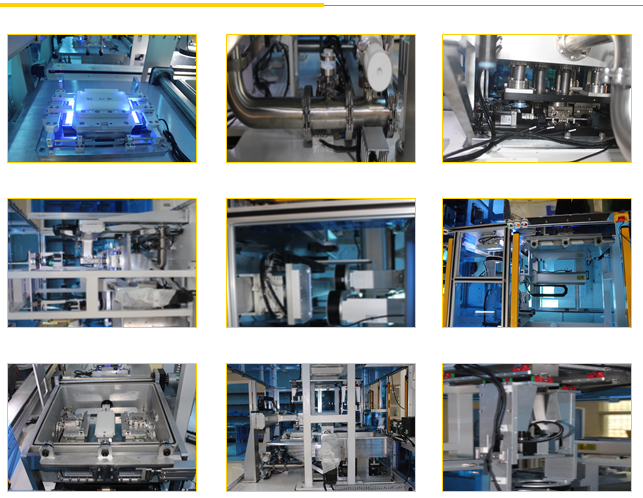

Overview:Vacuum laminating equipment is controlled by PLC system, to realize the laminating process through the pneumatic components. With high precision universal positioning platform to achieve product position, and finished laminating in a vacuum cavity, combine both vacuum laminating and bubble removing functions together. Using CCD vision positioning system, combined with multi-directional precision fine adjustment to ensure the precision of laminating.
Consultation
  • Product details
  • Parameter configuration
  • Video
  • Application

Advantages：

  1. Practicality: It is suitable for hard-to-hard and soft-to-hard lamination of optical and rigid materials, such as the lamination of sensor and optical glass;

  2. Compatibility: feature switching within the camera vision;

  3. High precision: Using CCD vision system, automatic photograph, alignment correction and laminating;

  4. Humanization: all parameters are pre-programmed inside the main board, no need to change any settings, saving time and labor.


Name

Specification

Item No.


Machine CT

2PCS/45S(Dual-station)

Yield Rate

99%

Utilization Rate

98%

Laminating Accuracy

±0.05mm

Machine Dimension

L*W*H:1550mm*2300mm*2300mm

Power

8KW

Weight

1500KG

Air Consumption

7L/MIN

Working pressure

0.5～0.8MPa

Voltage

AC 380V ±10%  50HZ
