Overview

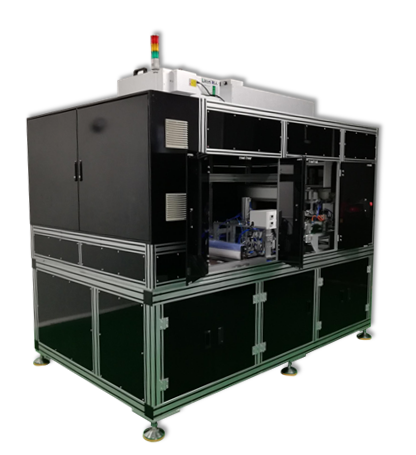

Fully automatic GDF laminating equipment V1.0 realize the template station switching through the ring guide rail mechanism, dispensing, and then rolling the glue to the required film thickness through the rolling mechanism, and finally curing the glue by the UV exposure mechanism, the upper and lower sides can be exposed at the same time; the equipment is mainly composed of a mechanism components, feeding mechanism, transfer mechanism, peeling mechanism, rotary mechanism, dispensing mechanism, rolling mechanism, UV exposure mechanism and electrical control system.

Advantage

1. Practicality: Automatic loading and unloading, complete the texture transfer process and attach a protective film;

2. Operability: Manual feeding the PET film at intervals and collect the finished products after film coating ;

3. Humanization: All parameters are pre-programmed inside the main board, no need to change any settings, saving time and labor;

4. High quality: the texture transferred to the PET film can be boiled
